Certification |
Yes
- FAA PMA
via FAA
PMA Supplement 7
|
Yes
- FAA PMA
via FAA
PMA Supplement 1
|
Yes
- FAA PMA
via FAA
PMA Supplement 1
|
Yes
- FAA PMA
via FAA
PMA Supplement
10
|
| The
Pitch |
Top
Seller!
Universal
fit. Tough.
Very High
Torque
Super durable
design
High efficiency wound field motor.
Low
current draw
Light
Weight - only 9.3
lbs. Replaces nearly all* original
equipment starters on
non-geared Lycoming engine-powered aircraft. Now used by
Lycoming as factory
OEM on most aircraft manufacturers' engines.
* For newer C206 or
B60 aircraft, use 149-24PM
|
The
original High-Torque is where it all started with
Sky-Tec. Now with
internal, self-resetting kickback protection. High Efficiency Wound Field Motors.
HT starters are ideally suited for piston helicopters and workhorse operations requiring a rugged
design, maximum reliability & service life.
Designed to spin the prop twice as fast during start.
Environmentally sealed case. Rugged all metal gears.
All steel ball bearings. Heavy-duty drive. |
The Original Flyweight™
is also the lightest toughweight in the business.
Newly improved strontium-fortified alloy casting.
The
best value in Lycoming
replacement starters. Hi-torque, permanent magnet motors.
Lightweight. High Performance. Save up
to 10 pounds under OEM heavyweight starters. Twice as fast as old, heavyweight OEM
starters. Faster spin = easier engine starts.
Especially improves hot engine start performance. |
The
lightest PMA certified Lycoming starter ever!
Weighs just 6.5 lbs. and is every bit as capable as the
original flyweight LS and PM starters. Ideal for all
4-cylinder Lycoming engines. Available in 12V, 24V
for 122-tooth and 149-tooth ring gears. Still up to
twice the spin as old, heavyweight Bendix starters and
saves up to twelve pounds! The lightest
starter available for Lycoming O-235 through
IO-390
engines.
|
| Advantages |
Exclusive
KPS
(Kickback Protection System)
via shear pin
Low Current Draw - 9.3 lbs. Light
Zero
Maintenance
No
Bendix = No Headaches
Rugged
& reliable: all-metal gears, sealed case & vibration-proof
solenoid.
PMA
certified = No
Paperwork
|
Exclusive
KPS
(Kickback Protection System)
via
self-resetting clutch.
Lightweight
(8.9 lbs.)
Zero
Maintenance
No
Bendix = No Headaches
Rugged
all steel ball bearings and all-metal gears &
vibration-proof solenoid
PMA
certified = No
Paperwork |
Very lightweight
(8.25 lbs.)
The original Flyweight™
Fast Spin
Zero
maintenance
No
Bendix = No Headaches
PMA
certified = No
Paperwork |
Ultra
lightweight (6.5 lbs.)
Lightest
PMA Certified Starter
Fast
Spin
Zero
Maintenance
No
Bendix = No Headaches
PMA
certified = No
Paperwork
|
| Kickback
Protection |
via field-replaceable shear pin
|
via internal self-resetting
torque clutch
|
Reinforced modified alloy casting
will resist most kickbacks |
Reinforced modified alloy casting
will resist most kickbacks |
| Motor |
Wound Field |
Wound Field |
Permanent Magnet |
Permanent Magnet |
| Gear Reduction |
6.5:1 |
4.3:1 |
4.3:1 |
6.0:1 |
| Engagement |
No Bendix -
Electromechanical Solenoid |
No Bendix -
Electromechanical Solenoid |
No Bendix -
Electromechanical Solenoid |
No Bendix -
Electromechanical Solenoid |
| Bearings |
3X steel ball bearing races |
2X steel ball bearing races |
Needle bearing (nose)
/
Brass Bushing (rear of motor)
|
Needle bearing (nose)
/
Brass Bushing (rear of motor)
|
| Mount |
Die
Cast A-380 Aluminum |
Tough
strontium-fortified 356 T6 Aluminum Alloy -
gravitationally molded |
Tough,
strontium-fortified 356 T6 Aluminum Alloy -
gravitationally molded |
Tough,
strontium-fortified 356 T6 Aluminum Alloy -
gravitationally molded |
| Weight |
9.3 lbs. |
8.9 lbs. |
8.25
lbs. |
6.5
lbs. |
| TBO |
2700
hrs
(recommended, not required) |
2700
hrs
(recommended, not required) |
2700
hrs
(recommended, not required) |
2700
hrs
(recommended, not required) |
| Warranty |
2
Years |
2
Years |
2
Years |
2
Years |
| Models |
149-NL
149-NLR
122-NL
ext
cranking 12V |
149-NL/ec
149-NLR/ec
122-NL/ec
ext
cranking 24V |
149-12HT
122-12HT
149-12HT 149-12HT-h ext
cranking 12V |
149-24HT
& 149-24HT-h high
speed
-
or -
149-HT/ec
ext
cranking 24V |
149-12LS
122-12LS
149-12PM
122-12PM |
149-24LS
149-24PM
122-24PM |
122-12XLT
149-12XLT
|
122-24XLT
149-24XLT
|
| Voltage |
12V |
24V |
12V |
24V |
12V |
24V |
12V |
24V |
| RPM |
~120-140 RPM
@11V
Also see:
Debunking
the "too fast" myth. |
~120 RPM
@22V
Also see: Debunking
the "too fast" myth. |
~140-160RPM
@11V
Also see: Debunking
the "too fast" myth. |
~120-280RPM
@22V
Also see: Debunking
the "too fast" myth. |
~160-180RPM
@11V
Also see: Debunking
the "too fast" myth. |
~160-180RPM
@11V
Also see: Debunking
the "too fast" myth. |
~160RPM
@11V
Also see: Debunking
the "too fast" myth. |
~150RPM
@22V
Also see: Debunking
the "too fast" myth. |
| Power |
2.7kW |
2.2kW |
3.7kW |
5.2kW |
3.5kW |
3.0kW |
3.5kW |
4.0kW |
| Current |
125-220A @
11V, 140 RPM Test |
85-125A @
22V, 140 RPM Test |
~185-285A @
11V, 160 RPM Test |
24HT
~225-275A,
HT/ec ~90-135A
@22V
|
185-285A @
11V, 160 RPM Test |
125-185A @
22V, 160 RPM Test |
~185A @
11V, 150 RPM Test |
~105A @
22V, 150 RPM Test |
| Use |
Nearly all
12v aircraft with non-geared
Lycoming Engine(s)
(excl. C206 &
B60 Beech Dukes)
|
24V
"Workhorse" Aircraft such as Fleet Operators,
Flight Schools & Hard-to-Start 540-...D Single
"Dual Mag" Aircraft |
Helicopters
Robinson Helicopters
(use -h kit)
See Sky-Tec
Fit Guide
|
Helicopters
& Workhorse A/C
Robinson Helicopters
(use -h kit)
See Sky-Tec
Fit Guide
|
Weight
Conscious
Value Hunters
Weekend Flyers
See Sky-Tec
Fit Guide
|
Popular
OEM replacement 24V
Weight Conscious
See Sky-Tec
Fit Guide
|
Weight
Obsessed
Performance Passionate
See Sky-Tec
Fit Guide
|
Weight
Obsessed
Performance Passionate
See Sky-Tec
Fit Guide
|
| Eligibility |
FAA
PMA
Supplement
7 |
FAA
PMA
Supplement
7 |
FAA
PMA
Supplement
1 |
FAA
PMA
Supplement
1 |
FAA
PMA
Supplement
1 |
FAA
PMA
Supplement
1 |
FAA
PMA
Supplement
10 |
FAA
PMA
Supplement
10 |
| Price |
from
$431 Click for Prices
|
from
$488 Click for Prices
|
from
$488
Click for Prices
|
from
$531
Click for Prices |
from
$380
Click for Prices |
from
$452
Click for Prices |
from
$359
Click for Prices |
from
$431
Click for Prices |
Cost
to
Rebuild |
$255 |
$289 |
$289 |
$314 |
$225 |
$267 |
$212 |
$255 |
| Buy |
BUY NOW |
BUY NOW |
BUY NOW |
BUY NOW |
BUY NOW |
BUY NOW |
BUY NOW |
BUY NOW |
|
|
|
|
|
| Product
Resources |
NL
Installation Sheet NL/ec
Installation Sheet
Includes
recommended TBO information
NL
Shear Pin Resetting Instructions
|
HT
Installation
Sheet HT/ec
Installation Sheet
Includes
recommended TBO information
|
LS
Installation Sheet PM
Installation Sheet
Includes
recommended TBO information
Modifying
the PM Starter to fit Cubs with chin-mounted oil coolers
|
XLT
Installation Sheet
Includes
recommended TBO information
|
Actual Prices are set by Sky-Tec's
distributors
Find the recommended starter for your
aircraft
The new XLT line is simply an unprecedented
starter: Only 6.5 lbs and thoroughly capable of cranking
any 4-cylinder Lycoming engine. Available in 12V, 24V,
122-tooth and 149-tooth compatible models - FAA PMA Certified -
and available NOW!

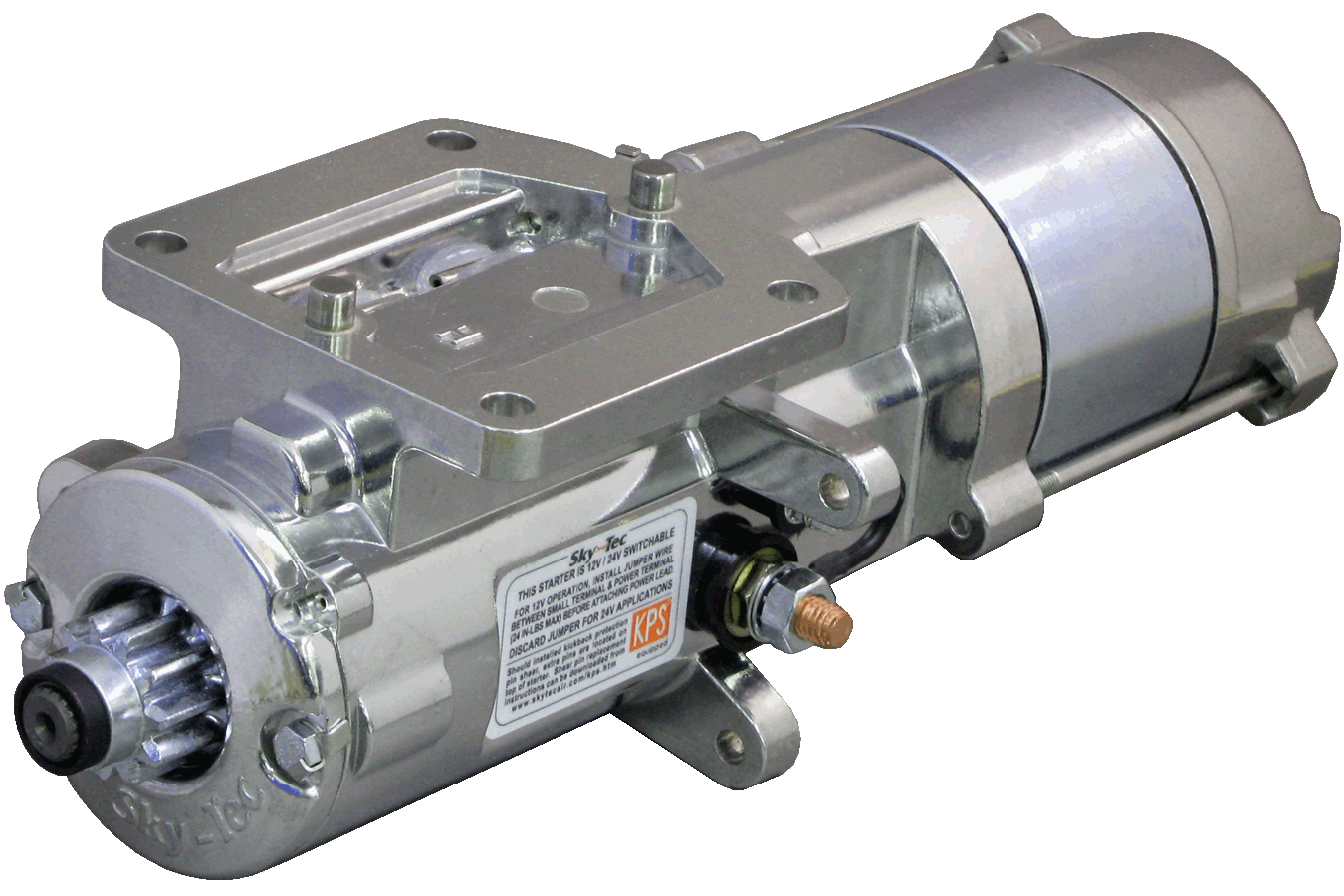

Our classic High-Torque Inline starter is
the recommended starter for just about any flat, non-geared
Lycoming piston engine application. Order the new
SuperDuty NL/ec version for 24 volt aircraft or the #1 selling
NL for 12 volt aircraft. Especially easy to fit for short-wing
Pipers, retractable Cessnas, helicopters, rugged operations
and harsh environments or applications with minimal clearance in
front of and around the starter. /ec starters have
been independently tested to repeatedly demonstrate over seven
minutes of combined cranking in a nine minute period! Shear pin
protected against kickback.

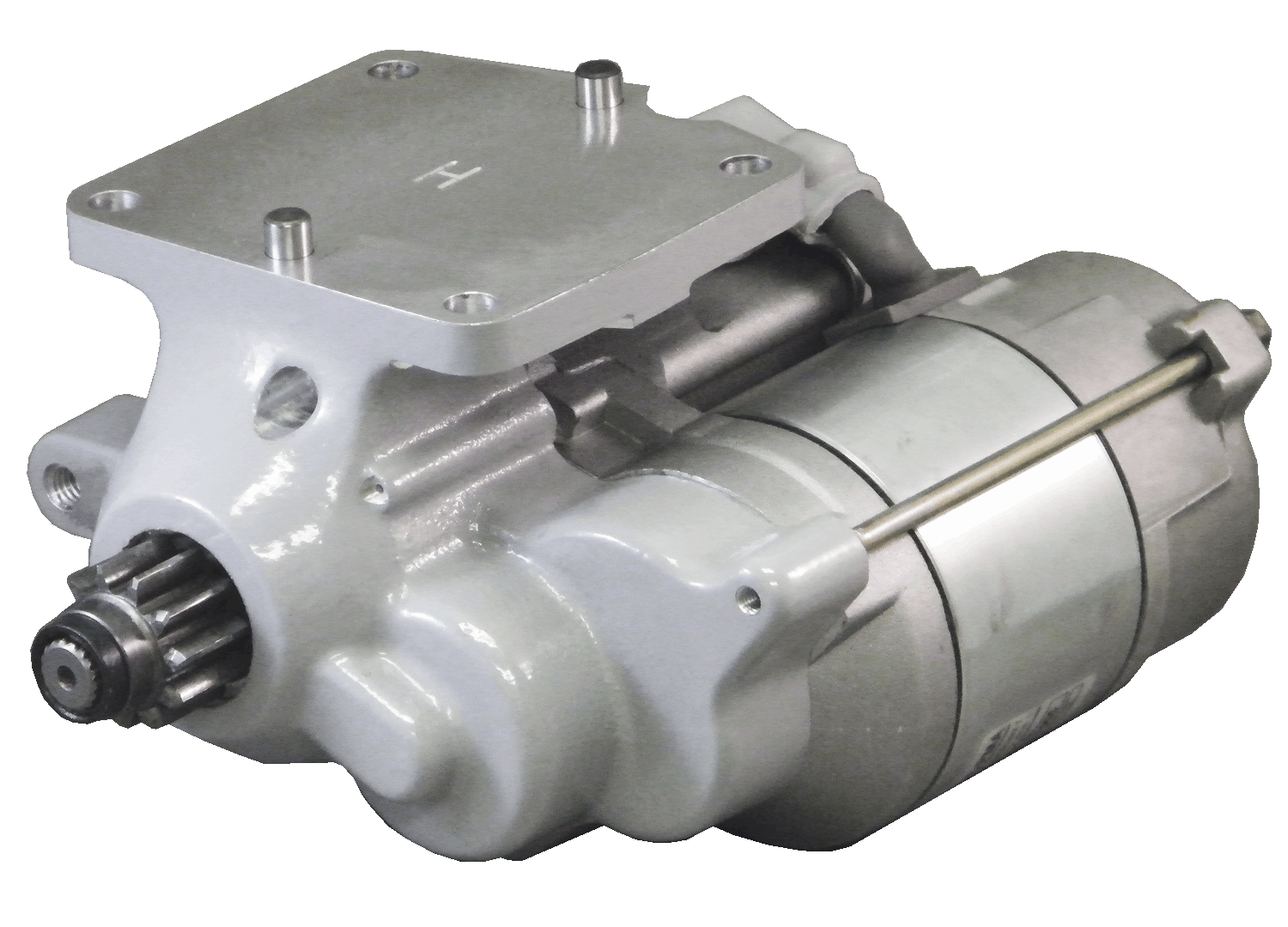

The time-tested HT Models continue to be a top
seller in applications such as helicopter fleet ops needing additional ruggedness,
performance and reliability. It has also been improved
with both the /ec SuperDuty motor system as well as tougher,
beefier mount castings for maximum performance in the toughest
applications. The noseless design makes it a
good fit for many tight cowling applications and its performance
makes it the original starter of choice for large engine
applications (Lycoming 720 series-powered aircraft). The
HT's performance characteristics are nearly identical to those
of the High-Torque Inline listed in the chart above.

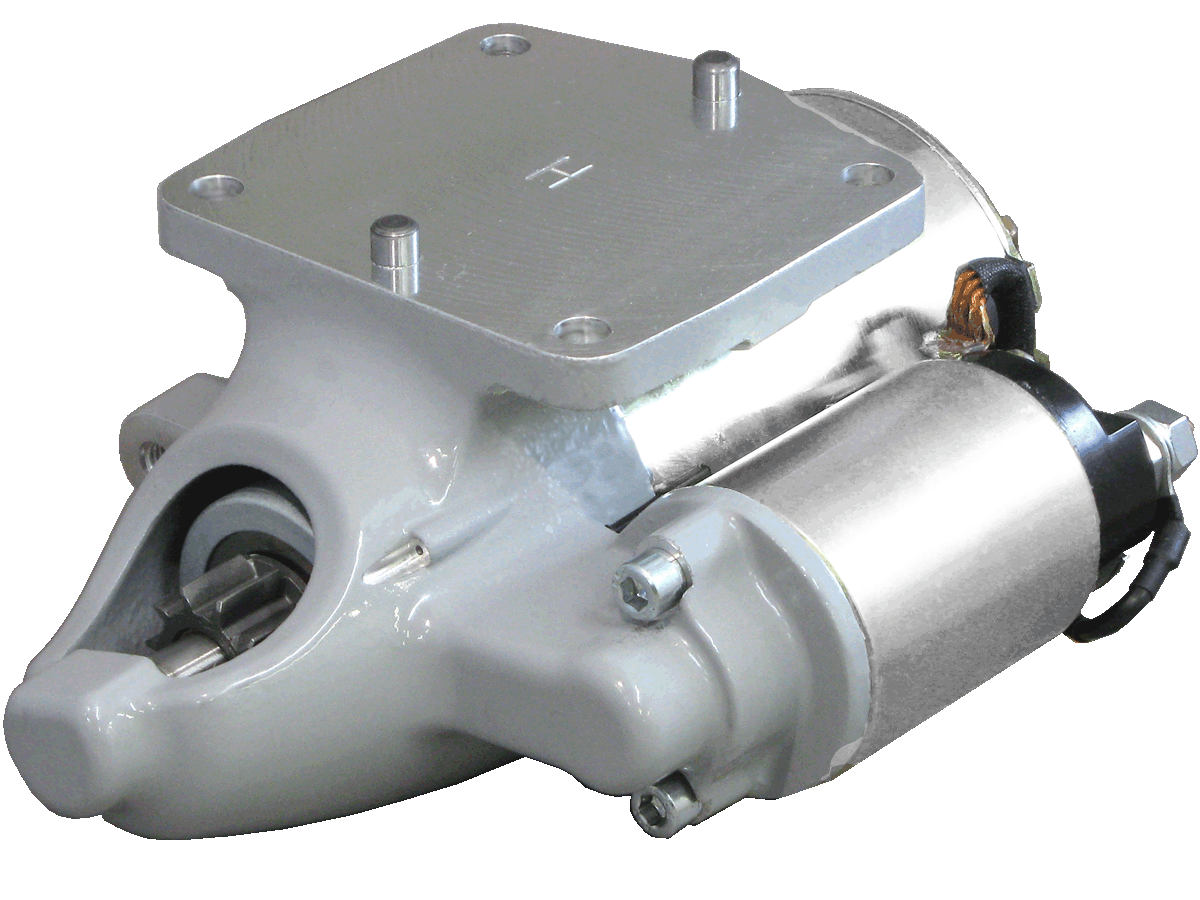

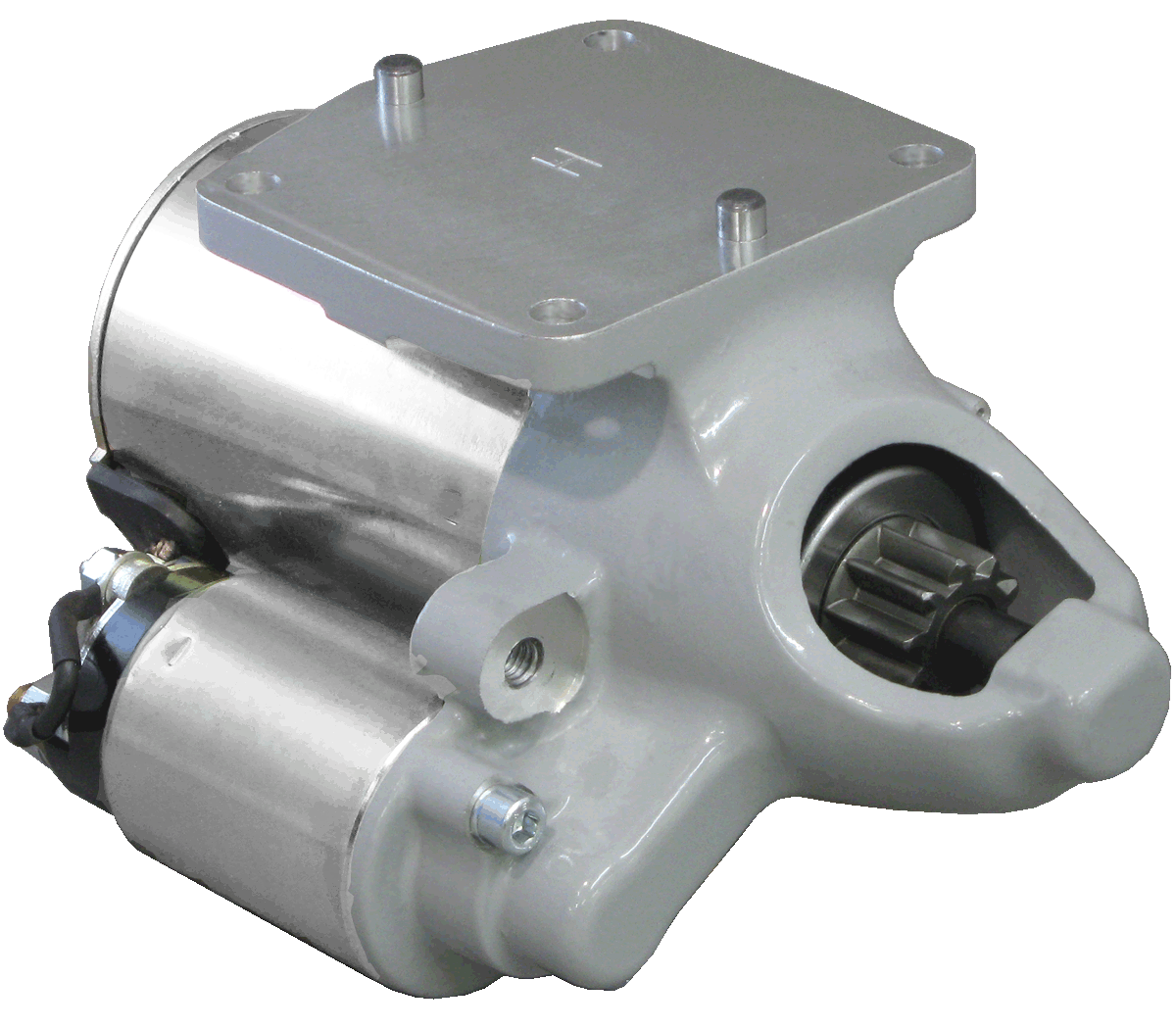

The LS/PM models are the flagship of the
Sky-Tec product family. They are identical to each other
in composition and performance, however LS models have the solenoid
located toward the left side of the aircraft and the PM models
have the solenoid located toward the right side of the aircraft.
Select the right model for your aircraft based on the location
of accessories around your starter using the fit
guide. When unsure, purchase the High-Torque Inline
starter - it WILL fit!
Our Lycoming LS,
PM & HT starters also feature an integrated starter solenoid for
homebuilt applications not wishing to install a separate
firewall solenoid. Click
here for details.
