Model

Franklin F12ST2

122-LSA



12RX HD

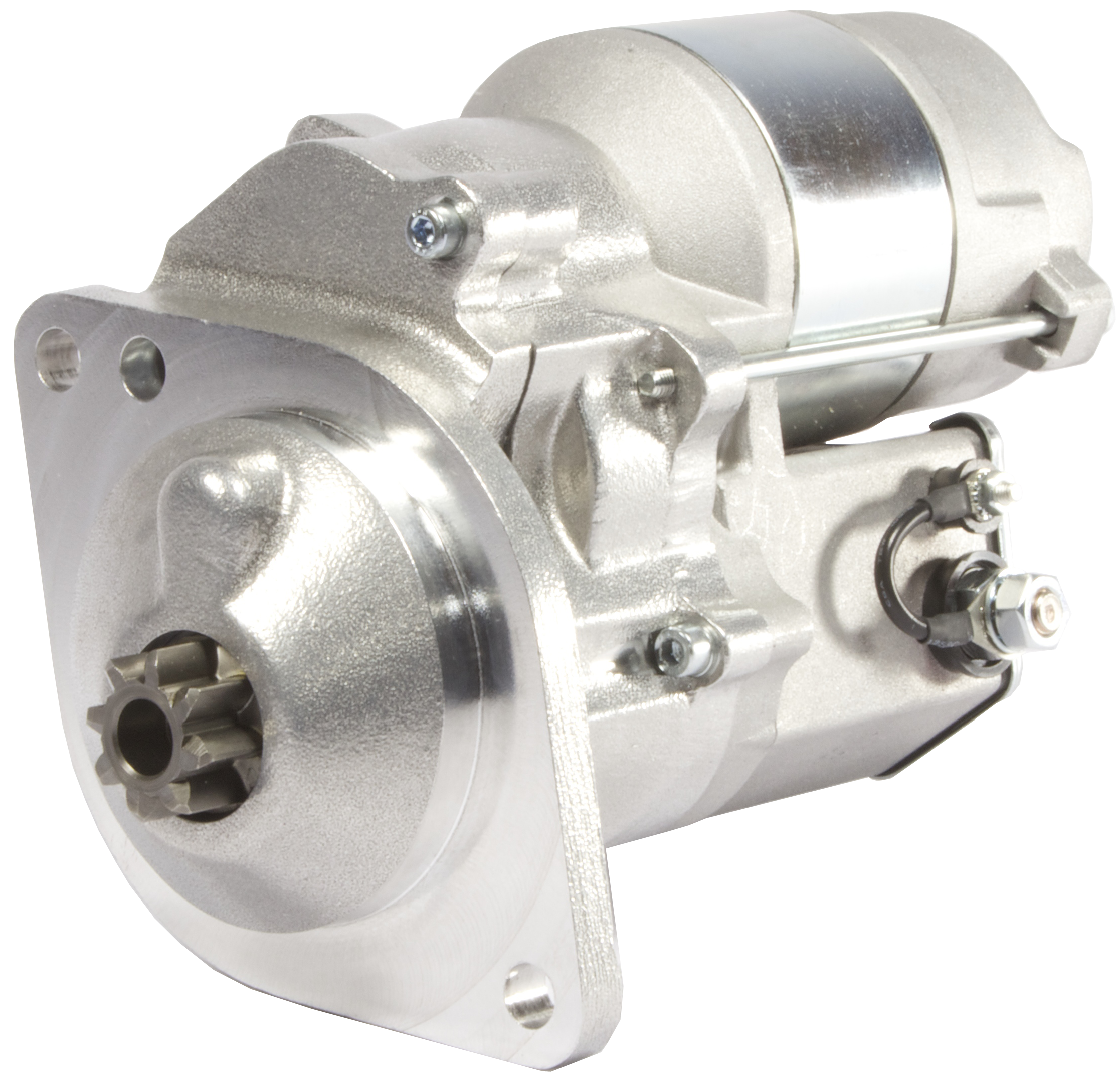

Description All new kickback protected starter for Franklin engines.  Weighs just 9.2 lbs.  High-Torque. Saves up to 12 lbs. from old OE Franklin starters. Features Sky-Tec's exclusive self-resetting KPS kickback protection clutch.  FAA-PMA

The lightest Lycoming starter ever at just 6.3 lbs. The 122-LSA is Lycoming's factory OEM starter on the new O-233 LSA engine. An excellent 12V starter for O-235, O-290 and O-320 engines with 122-tooth ring gears. Plenty of torque, high cranking speed, low current draw. Features a precision machined housing specifically designed to mount the lightweight Plane-Power AL12-EI60 alternator - enabling the industry's lightest weight starter/alternator pairing at just 13.2 lbs. for both! For use in experimental aircraft only. Not FAA PMA Certified.  Experimental.

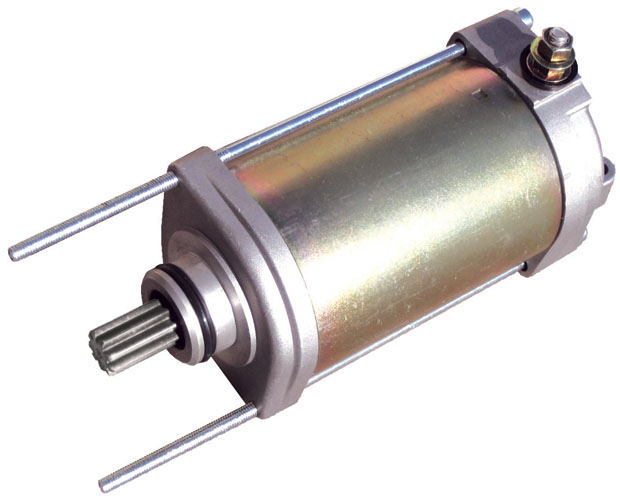

Manufactured by Sky-Tec, these are direct replacements for electric starters on all Rotax 912 and 914 engines. High torque and lightweight, Sky-Tec Rotax starters crank 10% faster and draw slightly less current than Rotax "HD" starters. For use in experimental aircraft only. 4.1 lbs. Not FAA PMA Certified.  Experimental.
Installed

Weight

9.2 lbs. 6.3 lbs. 4.1 lbs.
Nominal

Voltage

Available in 12V or 24V 12V

12V



Engine(s) Franklin 4A-235-B3, -B31; 6A4-150-B3, -B31; 6A4-165-B3; 6A-335-B1; 6V335-A, -B; 6A-350-C1, -C1R; 6V-350-A, -B Lycoming O-233, O-235, O-290, O-320

w/122 tooth ring gears



Rotax 912 and 914

series

aircraft engines



Certification(s) FAA-PMA

none

(Experimental/E-LSA)



none

(Experimental/E-LSA)

Warranty

2-year





2-year





2-year



Documentation/

Resources

Installation Sheet

coming soon
